RapidTrak™ Series

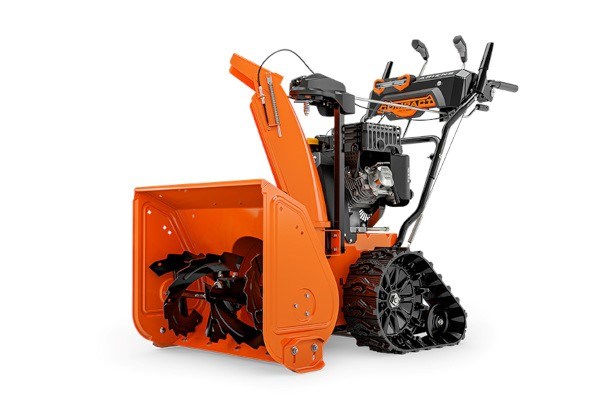

COMPACT 24 RAPIDTRAK - 920032
Overview:
- Ariens® AX 224CC engine with electric start
- Strong cast-iron gear case
- Ariens exclusive Rapidtrak™ technology is capable of tackling any terrain
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
RAPIDTRAK VERSATILITY
Three adjustable positions to tackle any winter scenario. Switch on-the-go between Track Mode (Pos. 1) for regular snow-clearing, Wheel Mode (Pos. 2) for maneuverability or Dig-In Mode (Pos. 3) for extra traction in deep snow and slippery conditions. The track lugs and large surface area bite into icy or steep surfaces, maintaining traction to power forward and send snow flying.
MANEUVERABILITY & SPEED
Maximum maneuverability and speed that’s not typically found in track machines. With RapidTrak speed, operators quickly clear snow with traction, power and agility.
UNDISPUTED POWER
Dig-In Mode gives operators full traction and a better housing angle to reach the pavement surface even with heavy piles of snow found at the end of the driveway.
HYDROSTATIC DRIVE
Infinite speed control delivers torque quickly and efficiently to power through piles of snow. Available on certain models.
AUTO TURN
Combines the power of a track machine with the zero-turn radius of a wheeled Sno-Thro®.
POWERFUL ENGINE
The fully loaded Ariens AX engine provides the power to tackle any condition.
Specifications
| Title | COMPACT 24 RAPIDTRAK |
| Model Number | 920032 |
| Power Train | |
| Engine | Ariens AX® |
| Engine Displacement (in/cc) | 223 cc |
| Starting System | 120v / Electric |
| Steering | Auto-Turn |
| Drive Type | Disc-O-matic |
| Speeds | 6 Forward/2 Reverse |
| Tire Type | Directional Snow Track |
| Clearing Specs | |
| Clearing Width (in/cm) | 24 In |
| Housing Height | 20 In |
| Throwing Distance | 3 ft - 40 ft |
| Chute Rotation | 2.5x Quick Turn |
| Chute Turning Radius | 205 |
| Deflector Control | In-Dash Lever |
| Stage Type | Two Stage |
| Auger Diameter | 11 In |
| Auger Type | Steel Serrated |
| Impeller Profile | Steel 3 Blade |
| Impeller Diameter | 12 In |
| Skid Shoes | Steel Reversible |
| Scraper Bar | Steel Adjustable |
| Gear Case | Cast Iron |
| Dimensions | |
| Length | 53.3 In |
| Width | 26.4 In |
| Height | 44 In |
| Weight (assembled) | 220 lb |
| Warranties | |
| Product Warranty | 3 years residential use. 90 days commercial use |
| Gear Case Warranty | 5 Year Consumer, 1 Year Commercial |
| Accessories | |
| Features at a Glance | |
| Light Type | LED |
| Handwarmers | Optional |
| Remote Deflector Control | Standard |
| Drift Cutters | Optional |
| Track Drive | Standard |
| One Hand Interlock | Standard |
