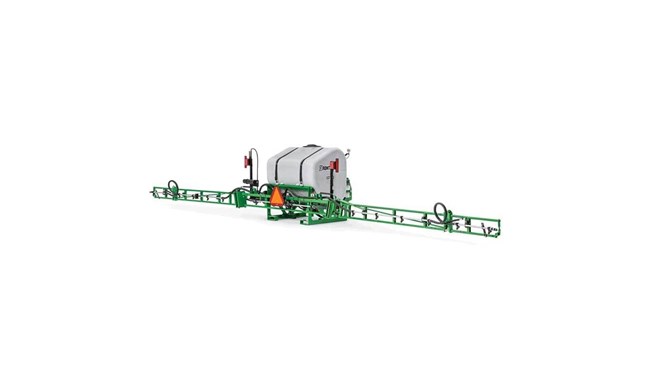

John Deere LS11 Series 3-Point Mounted Sprayers

Choose between a 170.3-L (45-gal.), 227.1-L (60-gal.), 416.4-L (110-gal.), or 567.8-L (150-gal.) tank

170.3-L (45-gal.) tank shown

Choose which tank size best fits the area needing sprayed and your current tractor. The rugged translucent yellow tank has molded fill level indicators, drain spout, and tank sump for ease of operation.

Choose between electric or power take-off (PTO) pump

Electric diaphragm pump

The electric diaphragm pump is available only on the 170.3-L (45-gal) LS2004 Sprayer with the ability to choose between a 7.6-L/min or 15.1-L/min (2-gpm or 4-gpm) pump. These pumps can run dry without damage, which protects you from premature failure and maintenance costs.

PTO pump shown

The six-roller cast PTO pump has a 79.5-L (21-gpm) flow and comes standard on the LS2006, LS2011, and LS2015 Sprayers with an option to upgrade to the Silver Series pump or the larger seven-roller pump available for the LS2015. The cast version of the roller pump is recommended when pumping water and can be used in agricultural applications, while the Silver Series pumps should be used with herbicide.

Choose between boom or boomless

Folding boom

You have the option to match boom width to your acreage and operation. These booms come in 3-m (10-ft), 3.8-m (12.5-ft), 5.5-m (18-ft), 7.3-m (24-ft), and 9.1-m (30-ft) lengths. Hinges on the boom allow it to break away instead of damaging crucial components when inadvertently hitting an obstacle.

A boomless option is available when you want to avoid obstacles in your property or if you have rough terrain. There are two boomless options: 7.3 m (24 ft) or 9.1 m (30 ft).

TeeJet® single nozzle body

Single nozzle body

Single nozzle bodies come standard on all units.

TeeJet is a trademark of Spraying Systems Co.

Manual fold/unfold on LS1130

Hydraulic fold/unfold on LS1145

All models, except the LS1145, fold and unfold manually. Simply remove a pin and swing the arms out, then extend the outermost edge of the boom. The LS1145 hydraulically folds and unfolds, allowing the operator to stay in the cab.

Breakaway booms

Hinge on boom

The boom has a hinge that allows it to break away instead of damaging crucial components when inadvertently hitting an obstacle.

Wet booms

The boom utilizes a stainless-steel pipe, instead of multiple hoses, for product distribution. This configuration leads to fewer parts, less chance of product trapped in the lines, and a reduced pressure drop.

Gas cylinder on manual-fold booms

The gas cylinder provides an ergonomic and safe mechanism that shortens manual folding and unfolding time.

Raven SCS 450™ Controller

Raven SCS 450 Controller

The Raven SCS 450 Controller automatically controls up to five sections (including two fenceline nozzles) of the boom depending on the speed of the tractor.

NOTE: The Raven SCS 450 option is available on LS1140 and LS1145 models only.

Texas Industrial Remcor console

Texas Industrial Remcor console

The Texas Industrial Remcor console manually controls three separate sections of the boom. It is available in base on all LS11 models.

Foam markers

Foam marker

Foam marker solution tank

Prevent crop damage and inability to control weeds due to skips and overlap by visualizing the placement of chemicals with foam markers.

SCS 450 is a trademark of Raven Industries Incorporated.

iMatch compatible

Implement-to-tractor hookup is simple with iMatch Quick-Hitch Category 1 compatibility.

Teardrop-shaped tank

The shape of the tank allows the liquid inside the tank to completely drain out, making it faster to switch from one chemical to the next, or prepare for storage.

Spray gun as standard equipment

All models in the LS20 Series Sprayers include a hand-held spray gun with a 9.14-m (30-ft) hose as standard equipment.
