Frontier™ Loader Attachments

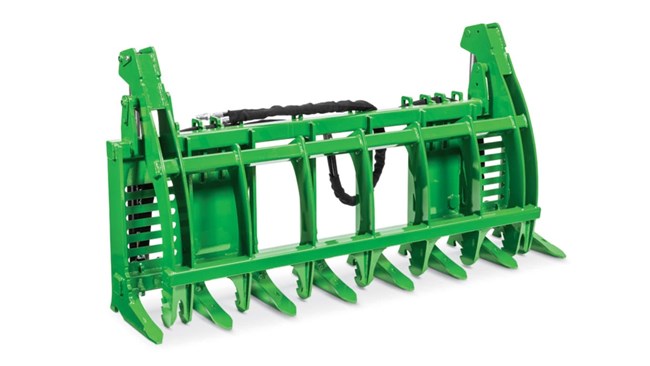

AV56G Series Root Grapples
Overview:
- Quick and Easy Connection
- Heavy-Duty Design to Tackle Tough Jobs
- Stability for Easy Compact Storage
- Hydraulics Mounted for Improved Protection
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Quick and Easy Connection
Quick and Easy Connection
Attaching the AV56G Series Root Grapple to a John Deere loader is easy with quick-change and global attaching systems. Just line up the loader's connecting points to the attachment frame and lock it in place.
AV50H (64”) fits 300 & 400 Series Carrier Compatibility (JD Carriers)
AV50E (72”) fits 300 & 400 Series Carriers Compatibility (JD Carriers)
AV56G (72”) fits 500 & 600 Series Loader Carrier Compatibility (Global Loaders)
AV50G (84”) fits 500 & 600 Series Loader Carrier Compatibility (Global Loaders)
Heavy-Duty Design to Tackle Tough Jobs
The AV56G Series Hydraulic Root Grapple is ideal for everything from leveling dirt and gravel to tearing up roots and moving trees. It was designed with versatility in mind, meaning the AV56G Series has the capabilities to tackle tough jobs from pushing debris to clamping or grabbing trees and limbs.
The full width design enables operators to clamp more material and improves overall weight balance since they aren’t limited to just the center of the grapple. The AV56G teeth have been designed to provide greater clamping of material without the risk of items falling out, and a push bar has been designed into the single piece top tine for pushing over small trees and repositioning brush.
The reduction in overall weight of the AV56G Series, compared to other Frontier™ grapples, has been seen to increase productivity without sacrificing loader lift capacity. With the AV56G Series you can pick up more material and utilize it on smaller tractors without compromising strength.
Stability for Easy Compact Storage
Stability for Easy Compact Storage
The base frame and welded feet provide the AV56G Series with a stable surface so the grapple can be easily stored in the upright position while not being used. In addition to providing stability for improved storage, the heal of the boot will aid in ripping out roots.
Hydraulics Mounted for Improved Protection
Hydraulics Mounted for Improved Protection
To provide more protection, the hydraulics have been mounted to the bottom half of the frame with the fittings that face towards the frame.
Specifications
Key Specs
Dimensions
| Overall Base Width, in. (cm) | 72.4 183.9 cm |
|---|---|
| Top Clamp Width, in. (cm) | 64 162.6 cm |
| Depth (Closed), in. (cm) | 19.5 49.5 cm |
| Height (Closed), in. (cm) | 37 94 cm |
| Height (Open), in. (cm) | 46.5 118.1 cm |
| Grapple opening, in. (cm) | 44 111.8 cm |
| Weight, lb (kg) | 570 lbs. 258.5 kg |
| Shipping weight, lb (kg) | 1183 lbs. 536.6 kg |
| Bottom Frame Steel Thickness, in. (cm) | 0.5 1.3 cm |
Tractor Requirements
| Tractor HP Min./Max., HP (kW) | 50-140HP (37.3-104.4) |
|---|
Loader Interface
| Compatibility | 500, 600 Series (Global Carrier) |
|---|
Grapple Tines
| Tines - Upper Qty. | 7 |
|---|---|
| Tines - Lower Qty. | 8 |
| Tine Spacing, in (cm) | 10.5 26.3 cm |
| Bottom Tine Working Length, in. (cm) | 12 30.5 cm |
Capacity
| Lift capacity, lb. (kg) | Please review Loader Compatibility Chart |
|---|---|
| Grapple Clamping Force | 5645 (25.1) |
| Maximum clamping diameter, in (cm) | 43.4 110.2 cm |
| Minimum clamping diameter, in (cm) | 1.5 3.8 cm |
Attachment type
Weight
Grapple tine
Hydraulic cylinders
| Type | 2″ bore x 12″ stroke x 1-1/4″ rod |
|---|---|
| Quantity | 2 Cylinders |
| Max Hydrualic Pressure, psi (bar) | 3000 (207) |
Grapple clamping force
Set-up time
Warranty
| Time period | 1 Year Warranty |
|---|
