Frontier™ Loader Attachments
AY11 Series 4-in-1 Buckets
Overview:
- Strong frame for added durability
- Quick and easy attachment
- Serrated edge for secure movement
- Strong hinges for increased life
- See brochure for loader series compatibility
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Strong frame for added durability
Steel frame built to enhance bucket durability
The AY11 Series Four-in-One Bucket frame is built with welded components and high-tensile, heavy-gauge steel for maximum durability.
Attachment is quick and easy
Fits 300 to 500 Series Loaders

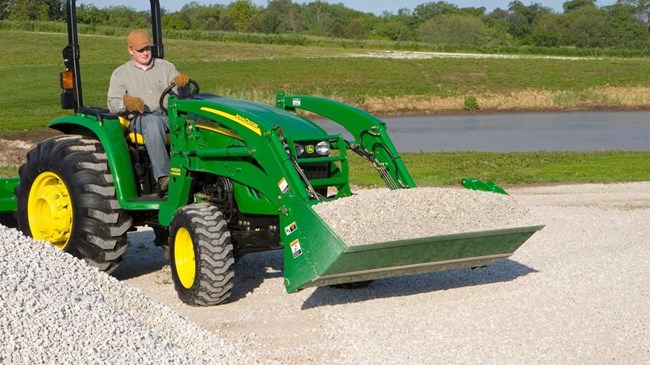

Attaching the AY11 Series Four-in-One Bucket to a John Deere loader is easy with its quick-change and global attaching systems. Just line up the loader's connecting points to the attachment frame and lock in place.
Serrated edge for secure movement
Serrated edges enhance overall bucket performance
The AY11 Series serrated edge firmly grasps material for secure movement.
Strong, steel hinges for increased wear life
Strong, sturdy hinges are built to last
The hinges on the AY11 Series are made of heavy-duty steel to resist bending and provide longer wear capability.
Toothbar kit for cutting on AD12 Series Debris Grapple Buckets and AY12 Series Four-in-One Buckets
Specifications
Key Specs
| Cutting width | 134.62 cm 53 in. |
|---|---|
| Clam opening | 81.2 cm 32 in. |
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
| Hydraulic cylinders - Type | Two double-acting |
| Clamp force - Closed | 5,782.7 N 1,300 lb-ft |
Dimensions
| Width | 134.6 cm 53 in. |
|---|---|
| Height | 52.4 cm 20.63 in. |
| Depth | 64.6 cm 21.5 in. |
| Cutting width | 134.62 cm 53 in. |
| Clam opening | 81.2 cm 32 in. |
Attachment carrier
| Current series style | 100, 200 and 300 (300 on 3E Tractor Only) |
|---|
Weight
| Operational | 128 kg 282 lb |
|---|---|
| Shipping | 137 kg 302 lb |
Hydraulic cylinders
| Type | Two double-acting |
|---|
Clamp force
| Open | 4,448.2 N 1,000 lb-ft |
|---|---|
| Closed | 5,782.7 N 1,300 lb-ft |
Bucket
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
