Frontier™ Snow Removal Equipment

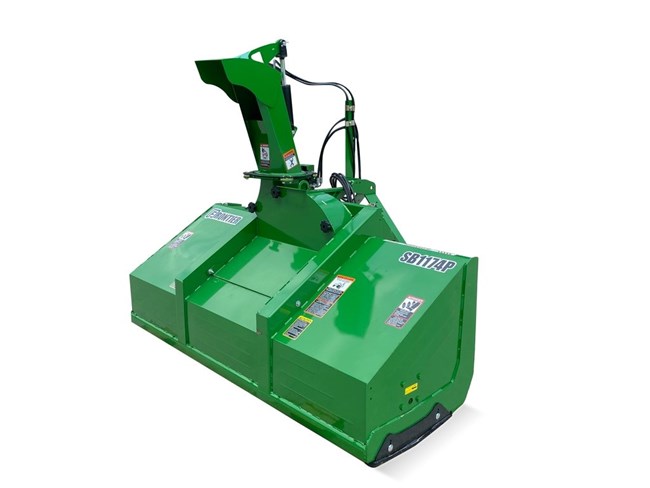

SB11P Series Pull Type Snowblowers
Overview:
- Adjustable Chute Deflector
- 245° Chute Rotation (Manual or Hydraulic)
- Adjustable and Replaceable Steel Skid Shoes
- iMatch™/Quick Hitch compatible
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Key features
Adjustable skid shoes extend the life of the snowblower
Increase durability and life of unit
Adjustable and Replaceable Steel Skid Shoes are in base equipment on the SB11P. Adjustable Steel Skid Shoes can help prevent damage or injury from stones being thrown, by raising the cutting edge off the ground. Replaceable skid shoes will help extend the life of your snowblower. Poly Skid Shoes are also offered as a Field-Installed option.
iMatch™ quick-hitch compatible
iMatch™ quick-hitch compatible
Models SB1164P and SB1174P are Category 1 and iMatch compatible.
Blow snow on 245° with manual or hydraulic chute rotation
Blows snow exactly where the operator wants it
All SB11P Series Snowblowers are equipped with manual or hydraulic chute rotation. Chute rotation adds versatility by allowing the operator to blow snow exactly where they want it to go, without repositioning the tractor.
Move snow faster and blow it farther with impeller blades
4 blades impeller
Moving snow faster and blowing it farther is simple with the four impeller blades.
Accurate snow discharge deflector adjustment for efficiency
Hydraulic chute deflector adjustment (option)
The SB11P Series Snowblowers come with a manual chute deflector adjustment in base. Available in option a hydraulic chute deflector adjustment from the seat of the tractor, for an even quicker and easier control.
This is beneficial when operating around buildings or on city streets and allow to adjust the reach of the blown snow.
Slope design and marker for better visibility
Field-installed hydraulic Chute rotation kit
Field-installed chute deflector adjustment kit
Field-installed skid shoes kit
Specifications
Key Specs
| Working width | SB1164P: 162 cm 63.75 in. SB1174P: 187 cm 73.75 in. |
|---|---|
| Operating weight, incl. chute | SB1164P: 276.7 kg 610 lb SB1174P: 285.7 kg 630 lb |
| PTO power minimum | SB1164P: 15 kW 20 hp SB1174P: 18.6 kW 25 hp |
| PTO power maximum | SB1164P: 37.3 kW 50 hp SB1174P: 41 kW 55 hp |
Dimensions
| Working height | All models : 64.8 cm 25.5 in. |
|---|---|
| Overall width | SB1164P: 165.1 cm 65 in. SB1174P: 190.5 cm 75 in. |
| Overall height (without chute) | All models : 92.7 cm 36.5 in. |
| Overall height (with chute closed) | All models : 153.7 cm 60.5 in. |
| Overall length | All models : 102.2 cm 40.25 in. |
Weights
| Operating weight, incl. chute | SB1164P: 276.7 kg 610 lb SB1174P: 285.7 kg 630 lb |
|---|---|
| Shipping | SB1164P: 290.3 kg 640 lb SB1174P: 299.4 kg 660 lb |
Chute
| Chute position | All models : Right |
|---|---|
| Rotation type | All models : Manual or hydraulic |
| Rotation degrees | All models : 245 degree (angle) |
| Flow restrictor (rotation) | All models : Yes |
| Flow restrictor (deflector) | All models : No (available via parts) |
| Hoses support | All models : Yes |
| Deflector adjustement (2 part chute) | All models : Manual (hydraulic or electric in option) |
Drum
| Rotation | All models : No |
|---|
Auger
| Diameter | All models : 3.175 cm 1.25 in. |
|---|---|
| Speed | 170 rpm |
| Overload protection | Single |
| Auger - Single / dual | All models : Single |
| Main auger diameter | All models : 38.1 cm 15 in. |
| Auger driven system | All models : Chain No.60 |
| Shaft diameter | All models : 3.175 cm 1.25 in. |
| Second auger diameter | All models : N/A |
| Second auger driven system | All models : N/A |
Impeller
| Blades | Four |
|---|---|
| Diameter | -- |
| Width | All models : 17.8 cm 7 in. |
| Impeller shaft diameter | All models : 3.5 cm 1.375 in. |
| Impeller RPM | All models : 540 rpm |
| Direction of impeller rotation | All models : CCW |
Tractor compatibility
| PTO power minimum | SB1164P: 15 kW 20 hp SB1174P: 18.6 kW 25 hp |
|---|---|
| PTO power maximum | SB1164P: 37.3 kW 50 hp SB1174P: 41 kW 55 hp |
Housing
| Housing thickness | All models : 53 L 14 gal. |
|---|---|
| Side panel thickness | All models : 53 L 14 gal. |
| Impeller housing thickness | All models : 45.4 L 12 gal. |
Chain
Hitch
| Parking stand | All models : Yes |
|---|---|
| Type of hitch | All models : 3 pts, cat. 1 |
| Compatibility with quick hitch | All models : Yes |
Cutting edge
| Replacable & reversible cutting edge | All models : Fixed |
|---|---|
| Cutting edge material | All models : Carbon steel |
| Cutting edge dimension | All models : 0.9525 cm 0.375 in. x 5.08 cm 2 in. |
Skid shoes
| Adjustable and replacable skid shoe | All models : Yes, 3 positions |
|---|---|
| Skid shoe material | All models : Carbon steel |
Drive
| Chain idler | All models : Yes |
|---|---|
| Number of auger shearbolt | All models : 1 (on the driving shaft) |
| Number of impeller shearbolt | All models : 1 (on the driveline) |
Set-up time
| Labor hours | All models : 1 hour |
|---|
Warranty period
| Machine | All models : 1 year |
|---|
